手糊成型工艺
在模具上均匀涂上脱模剂和胶衣树脂,然后铺放增强材料,用压辐及毛刷涂覆混有固化剂的树脂，使树脂浸渍增强材料并驱除气泡，铺层操作反复进行直至达到制品的设计厚度，然后在常温或加热条件下固化成型。

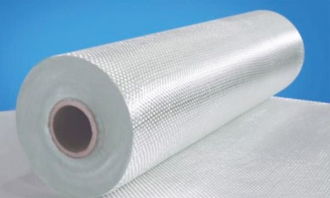

玻璃纤维方格布
玻璃纤维方格布适用于各种增强树脂，如UP、VE, EP和PF等。玻璃纤维无捻粗纱布产品幅宽范围50mm ~3000mm,单位面积质量范围260g/㎡~1600 g/㎡,特殊规格可根据客户要求生产。
应用市场
(船艇/建筑/汽车/卡车/化学化工/电子电气和电信/运动休闲/风能)
STANDARD PRODUCTS
规格型号 Code | 玻璃类型 Glass type | 质量 Weight (g/m2) | 断裂强度≥N/50mm | 组织 Weave | 含水率% Moisture Content | 可燃物% L.O.I Content | |
Breaking strength | |||||||
经向Warp | 纬向Weft | ||||||
EWR200 | E/ECR | 200 | 1300 | 1100 | Plain | ≤0.2 | 0.4-0.8 |
EWR270 | E/ECR | 270 | 1900 | 1700 | Plain | ≤0.2 | 0.4-0.8 |
EWR300 | E/ECR | 300 | 2000 | 1800 | Plain | ≤0.2 | 0.4-0.8 |
EWR360 | E/ECR | 360 | 2200 | 2000 | Plain | ≤0.2 | 0.4-0.8 |
EWR400 | E/ECR | 400 | 2500 | 2200 | Plain | ≤0.2 | 0.4-0.8 |
EWR500 | E/ECR | 500 | 3000 | 2750 | Plain | ≤0.2 | 0.4-0.8 |
EWR530 | E/ECR | 530 | 3300 | 3000 | Plain | ≤0.2 | 0.4-0.8 |
EWR560 | E/ECR | 560 | 3500 | 3200 | Plain | ≤0.2 | 0.4-0.8 |
EWR580 | E/ECR | 580 | 3600 | 3300 | Plain | ≤0.2 | 0.4-0.8 |
EWR600 | E/ECR | 600 | 4000 | 3850 | Plain | ≤0.2 | 0.4-0.8 |
EWR720 | E/ECR | 720 | 4300 | 4150 | Plain | ≤0.2 | 0.4-0.8 |
EWR800 | E/ECR | 800 | 4600 | 4400 | Plain | ≤0.2 | 0.4-0.8 |
EWR1000 | E/ECR | 1000 | 5300 | 5100 | Plain | ≤0.2 | 0.4-0.8 |
EWR1200 | E/ECR | 1200 | 5900 | 5700 | Plain | ≤0.2 | 0.4-0.8 |
* Must specify fabric width Other constructions upon request
PRODUCT DATA
Type of Glass | E-glass glass formulation | |
Resin Compatibility | Polyester, Vinyl Ester & Epoxy | |
Coupling Agent | Silane | |
Linear Density (Tex or Yield) | Nominal ± 10% | |
Moisture (%) | ≤ 0.15% | |
Standard Construction | Balanced, 5 x 4 plain weave (Other constructions available upon request) | |
Packaging | Plastic bag wrapped, cylindrical rolls on side, 9 rolls per pallet | |
Roll Dimensions | Cylindrical 30cm ( 12.0” ) DIA x roll widths 15cm (6”) to 320cm (125”) | |
Roll Weights | 15 kg (32 lb) to 183 kg (403 lb) | |
Pallet Configuration |
Stretch Wrapped and Top Protected. Number of rolls and layers vary with roll width | |
Storage Recommendations | S (1) Do Not Double Stack | |
备注: 卷宽:标准宽度在1000mm，1270mm，其他尺寸根据客户实际需要，有200mm到3200mm可供选择。 包装:玻璃纤维无捻粗纱通常卷在内径为76毫米的纸管中。用塑料薄膜将纸卷包好，然后装入纸箱。水平放置纸卷，可以放在托盘上，也可以放在集装箱里。 储存:产品应储存在阴凉、防水的地方。建议室温和湿度分别始终保持在15℃至35℃和35%至65%。请在使用前将产品保存在原包装中，避免吸潮。
